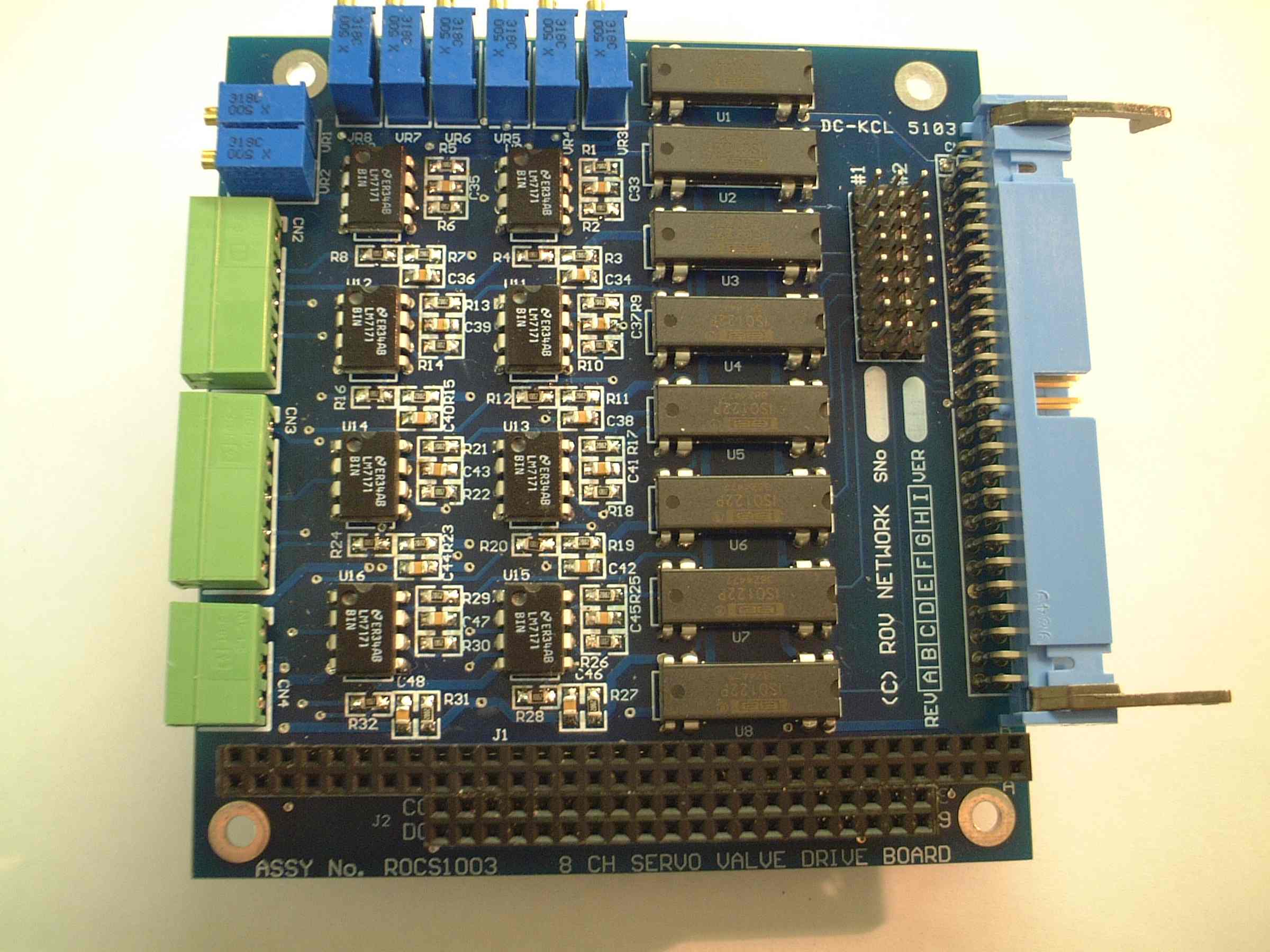

8 Channel isolated servo valve driver board (ROCS1003)
The ROCS 1003 series of PC104 servo valve driver boards provides 8 channels of isolated analogue output to drive servo valves. The standard card, ROCS1003, contains 8 opto coupled amplifiers which can drive any resistive or inductive load up to 40mA at voltages of up to 15V. Connections to the board are by Pheonix screw or push button connectors.
The Card is driven by any analogue output drive card. The board is a pin for pin compatible with the Ruby series of cards from Diamond systems Corp. Onboard adressing allows the card to be controlled by either the first 8 analogue signals or the second 8. This allows two boards to be directly connected to a single Ruby card with one ribbon cable.
 Features
 • Simple interface to analogue output cards
 • Current or voltage outputs
 • Offset adjustment available on each channel
 • Compatible with a wide range of boards

 Specification
 Dimensions PC104 95.9mm x 90.2mm
 Max Drive Current 40mA per output
 Max Drive Voltage +-15Vdc



List of companies with compatible products:

company
Diamond Systems Corporation
Micro/sys, Inc.
parvus Corporation
VersaLogic Corporation
WinSystems, Inc.
Robotrol Corporation
Hitex Automation
Zendex Corporation
Acrosser Technology Co., Ltd.
MicroComputer Systems, Inc.
MicroScience Ltd.
SCIDYNE
Octagon Systems
Eurotech, S.P.A.
SYN-TEK Technologies, Inc.
LiPPERT Automationstechnik
Industrial Design, Inc.
Arbor Technology
Comark Corporation
ADLINK Technology Inc.
ICOP Techonology Inc.
Arcom Control Systems
RTD Embedded Technologies, Inc.
Hectronic AB
Computer Conversions Corporation
conmilanDalanco Spry
PremierAdvance Products
ACCES I/O Products
Advantech Co., Ltd.
Nova Engineering
DSP Design Ltd.
PC/104 Embedded Solutions
Tri-M Systems & Engineering
General Standards Corporation
