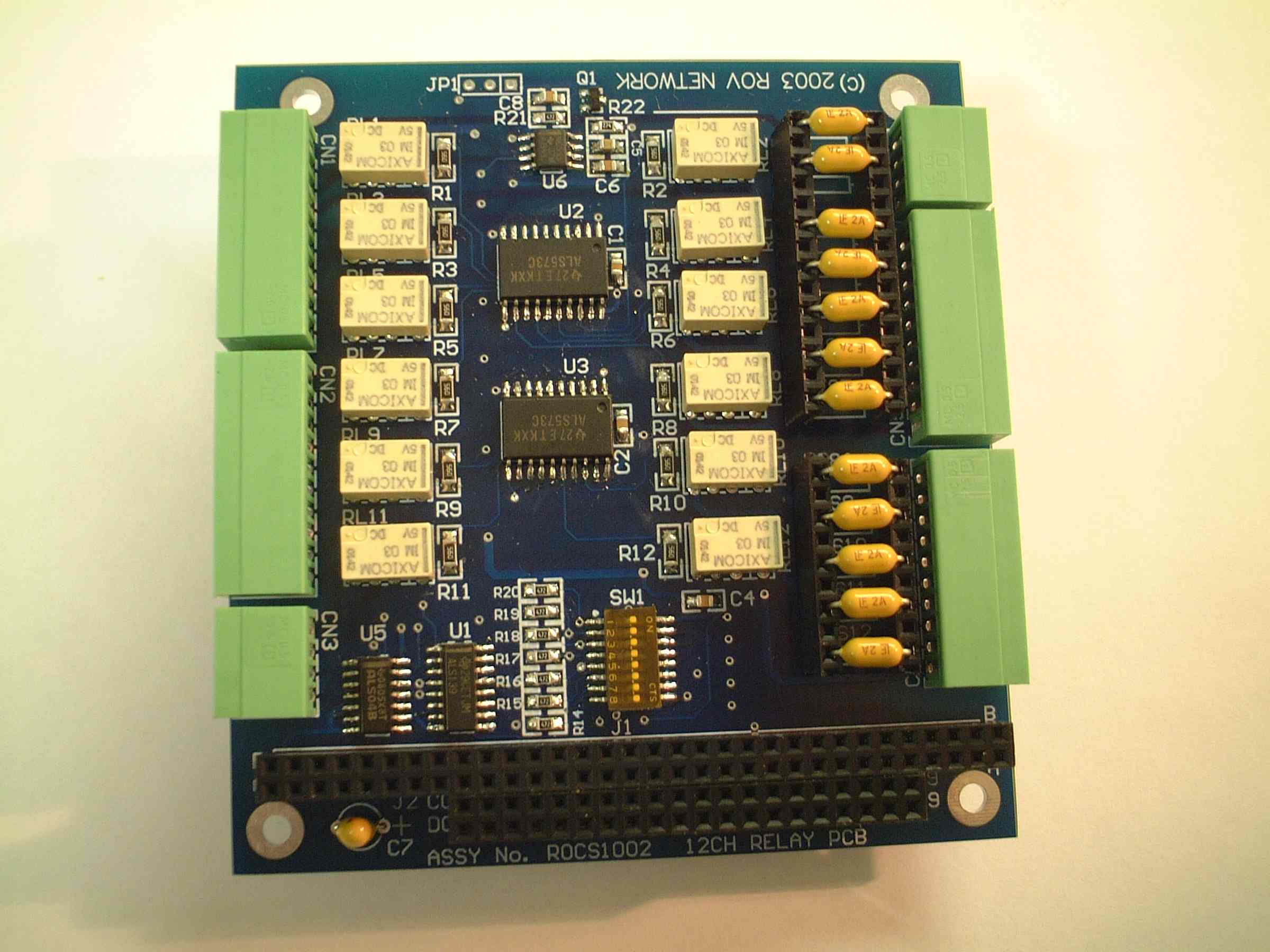

12 channel relay I/O board (ROCS1002)
The ROCS series of PC104 Relay boards provides a variety of different solutions for users. The standard card, ROCS1002, contains 12 double pole 1.5A relays connected to the outside world by pheonix screw or push button connectors. An additional 12 independent Input channels for limit switches or voltage free contacts are provided.
 Features
 • Flexible bus address selection
 • Onboard fuse protection
 • Normal or Poly resettable fuses
 • 12 Independent relay contacts
 • LED indication of relay actuation

 Specification
 Dimensions PC104 95.9mm x 90.2mm
 Address Bus 16-bit
 Max Switching Current 1.5A per relay
 Max Switching Voltage 30Vdc (Other options available)
 Circuit Protection 2A Fuse (Other options available)
 Options
 Drivers
